Feature Flag
This feature is under feature flag, which means its currently turned off by default. It will not appear in your environment unless it is manually enabled by Reveal. Contact your Customer Success Manager if you’d like to learn more or request access.
The Reveal Upload Manager is a desktop software that enables users to transfer Native files, Load files, and Images straight from their PCs or their network to the appropriate data staging location for processing in Reveal. It accommodates large data uploads by ensuring efficient and rapid file management.
Upload Images

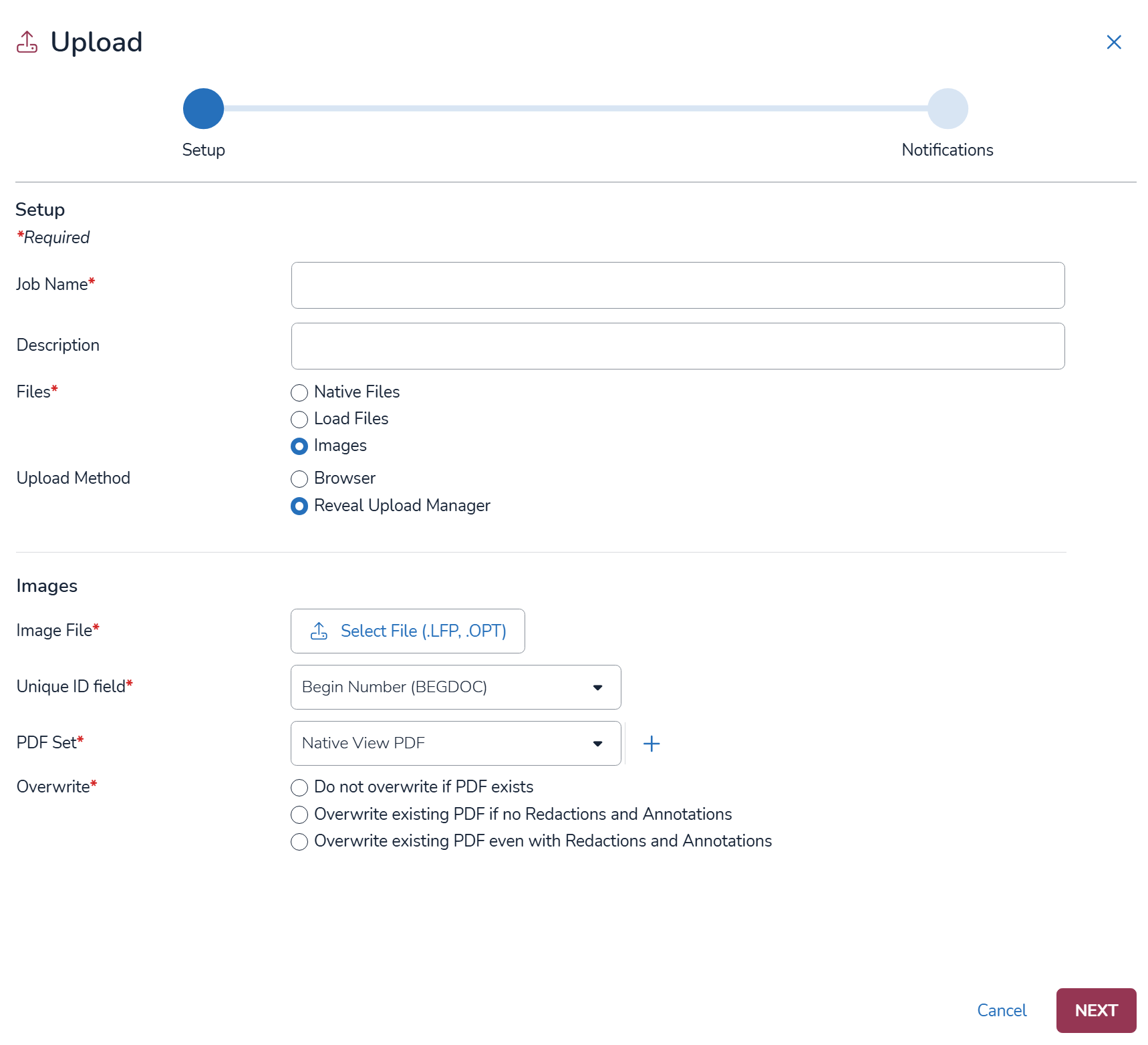

In the Uploads modal:
Select Images for the Files setting.
Choose the Reveal Upload Manager as the Upload Method.
Within the Images section, select your Image Files in .LFP or .OPT format.
Select the Unique ID field that will used to assign a distinct identifier to each image. This will ensure that every image can be tracked or referenced uniquely in the system.
In the PDF Set settings, the Native View PDF option will be set by default. You can also create and use another PDF set.
Important
Users cannot make redactions on secondary PDF Sets.
Choose an Overwrite option. These options will change based on the PDF Set you select. When choosing a secondary PDF Set, you have the option to Overwrite existing PDF or Do not overwrite if PDF exists.
Click Next.
In the Notifications tab, select which Users or Teams you want to inform through email for when the Upload completes.
After filling out both tabs, click on

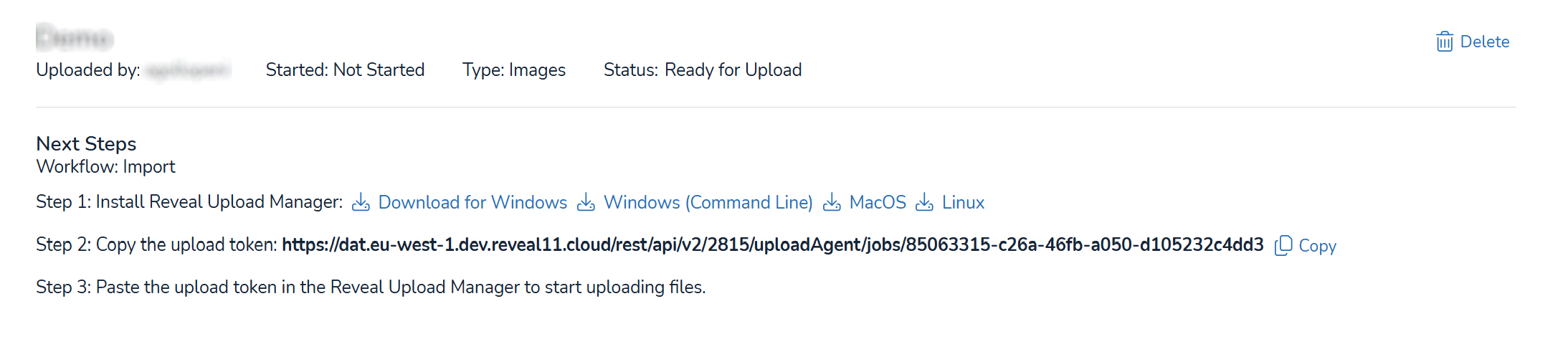

.You will be redirected to the following Uploads page:
Here, users can Install the Reveal Upload Manager application, which is available for Windows, Windows (Command Line), MacOS, and Linux.
Note
Make sure that you are using the most recent version of the Reveal Upload Manager application. The application will display a message within its interface when an updated version is ready. To download the new version, simply click on it, and it will be saved in your PC.
Click on the Copy icon to the right of the URL displayed in Step 2. This will copy the Upload Token which is needed by the Upload Manager to find your data. The generated Upload Token will remain valid until the upload is complete. You can pause and resume the upload job as needed during this time.
The token is also accessible in the Uploads tab in the web through the
blue key icon in the far right of your upload project. Note
Users can copy the access token and share it with other users to allow them to upload data directly from their local device.

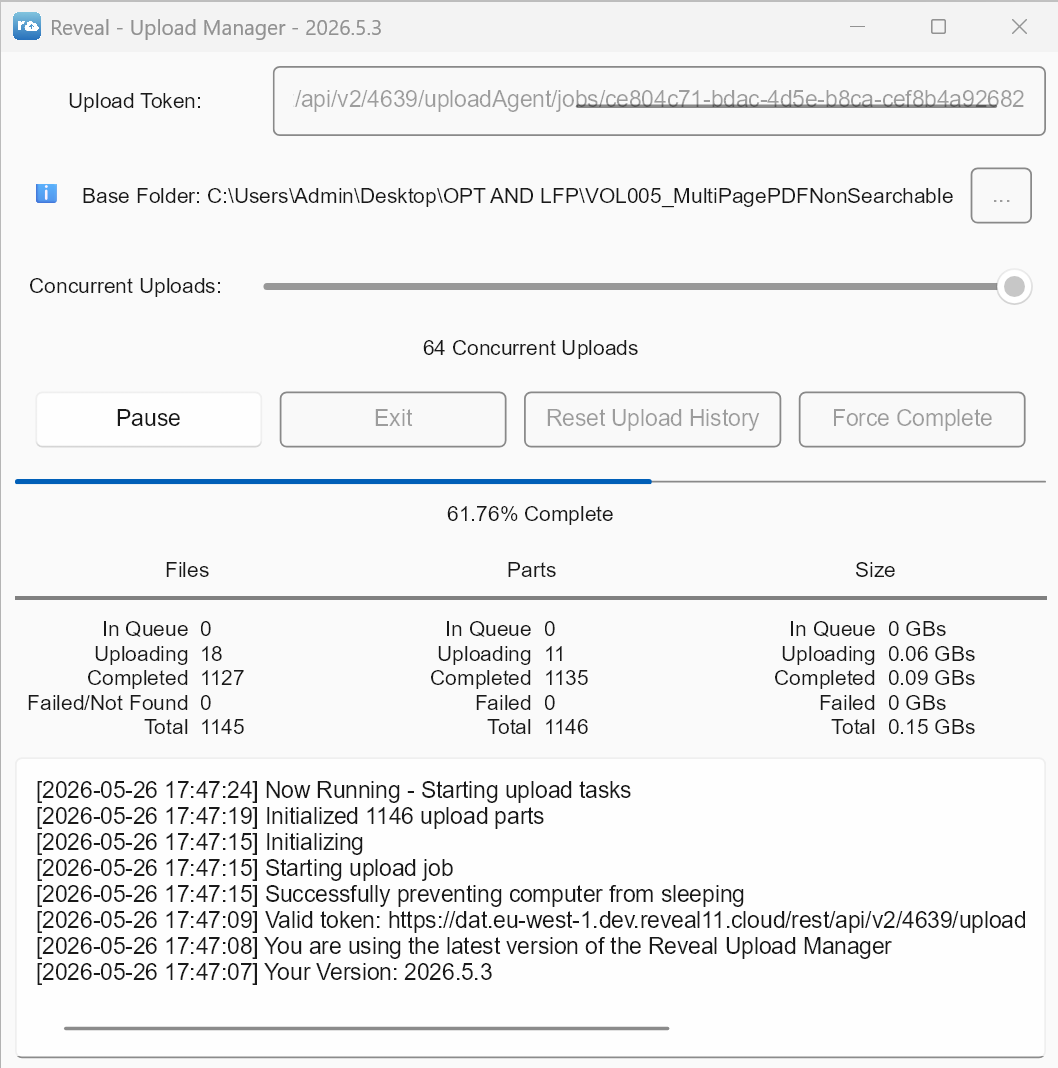

Open the Upload Manager application.
Paste the token you copied in the Upload Token field.
Click the ellipses [ … ] on the right to choose a Base folder for your upload.
For Image files, the Base folder should sit one level above the volume folder(s).
Note
Versions 2026.4.2 and later support OneDrive. Files are first downloaded and then uploaded to the S3 folder for processing. Because the process involves both downloading and uploading files, it may take longer to complete.
Use the slider to choose the number of Concurrent Uploads you want during the upload.
The maximum number of concurrent uploads for the Uploader is equal to the number of core CPUs in your computer.
Click Upload.
Once the upload is initiated, it runs independently and does not require the browser to remain open or conduct any monitoring.
The status log will let you know when the upload starts and completes.
You can see the progress both on the Upload Manager and the web browser.
In the status log, the upload is separated into files, parts, and size.
Files: The full document or item you’re uploading.
Parts: A smaller piece of a file. Large files are split into parts (16 MB–512 MB each) to make uploads faster and more reliable. Multiple parts can upload at the same time, and if the upload is paused or interrupted, only the parts in progress are affected. Any errors impact just the individual parts, not the entire file, and you can resume uploads without starting over.
Size: Sizes of the files.
During an upload, users can hit Pause or Exit at any time. When they Resume, the upload picks up right where it left off, using the same folder path that was originally selected. If they choose to Reset Upload History, the upload will start from the beginning.
To prevent conflicts, such as using the same token in multiple instances, the system locks the upload while it’s active. When you exit and reopen the app, you may need to wait about 60 seconds for the lock to clear because the database updates every minute to indicate the upload is still in progress.
The Force Complete button is not supported for Image Uploads.
Note
If a multi-page document contains an invalid or missing file path, the entire document will fail validation and return an error. However, processing will continue for other documents with valid pages and paths. Once the process is complete, a downloadable error log will be generated that identifies the affected documents and provides details about the load errors.
